M10N GPS

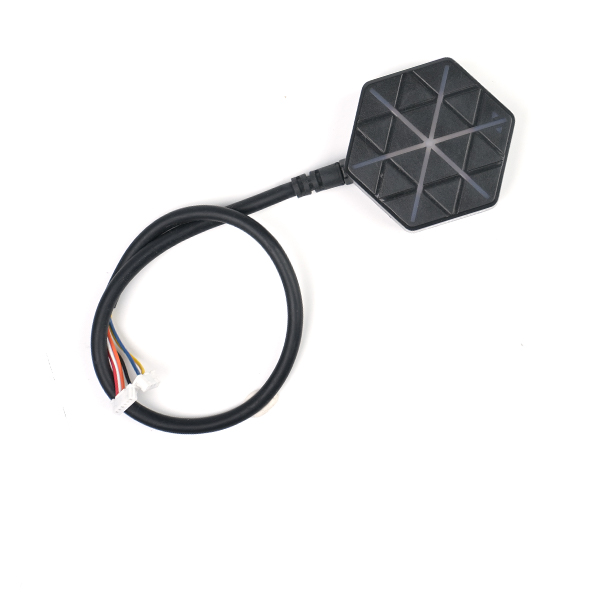

SE100

Dual Anti-interference Technology

Worry-free of UAV High-power Image Transmission, High-Voltage Lines, or Other Strong Signal Interference

Dual Anti-interference Technology

De-interference: Two-stage filtering with 78db attenuation effectively filters out-of-band interference.
Anti-interference: In-band input 1dB compression point -3dBm high linear LNA can minimize the impact

of even a small amount of interference signals that pass the filter.

Effectively resist strong signal interference, such as high-power image transmission on drones, high-voltage lines, etc.

Excellent Performance

50 centimeters positioning accuracy. Positioning 20 satellites in 6 seconds at open ground.

Super positioning capability even at the valley bottom.

Triple-frequency: 1561±1MHz, 1575±1MHz, 1602～1610MHz

BD1, GPS/L1, Galileo/E1, GLONASS/G1, and quad satellite system operation at the same time are available.

Protocol: Default NMEA

               But, when connecting the SE100 to the flight controller,  it will recognize the type of flight controller and automatically turn the protocol to the same protocol as the flight controller automatically when connecting the SE100 to the flight controller, when the SE100 disconnects with the flight controller, and the protocol will turn back to the default NMEA.

Baud rate: 38.4K

Voltage: 5±5%VDC

Current: 50-100mA

Top Configuration

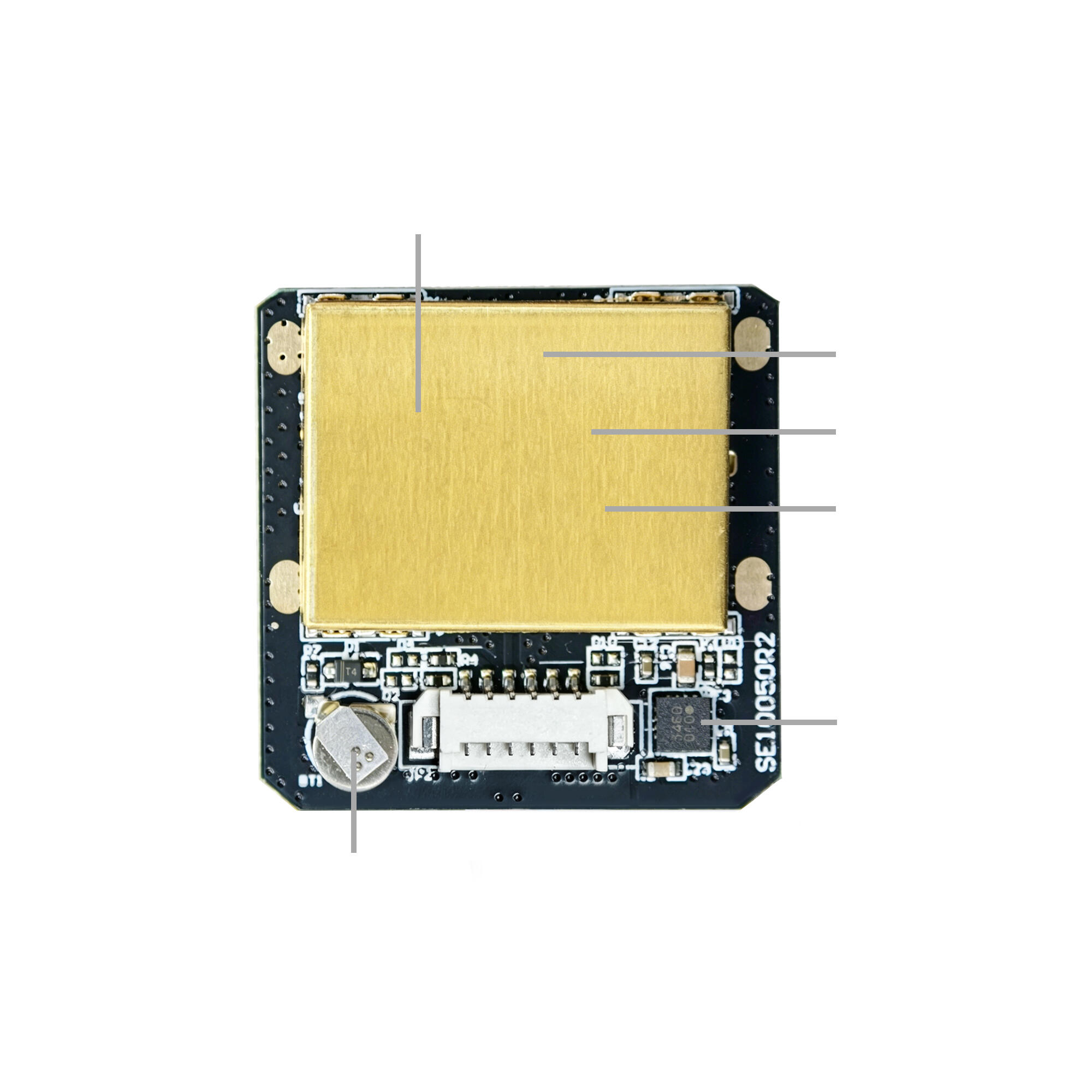

GPS decoder chip: Radiolink SE100, with Ublox M10050, is much better than a single GNSS 7N.

Built-in high-precision electronic compass IST8310 (I2C port).

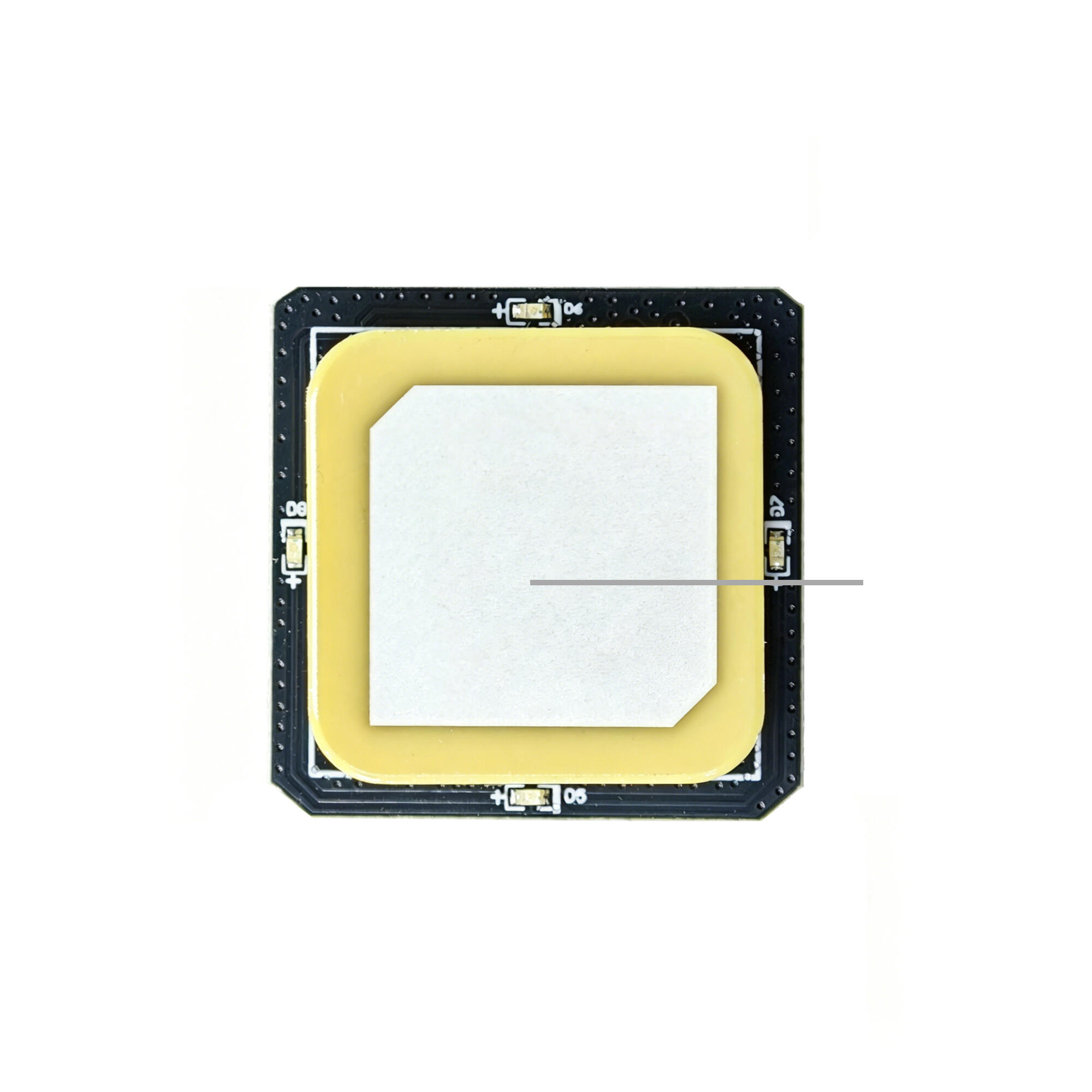

Antenna: 2.5dbI high gain and selectivity ceramic chip antennas

Power amplify IC: High-gain MMIC chip

Double Filter: two-stage SAWF (Surface acoustic wave filter) from Murata

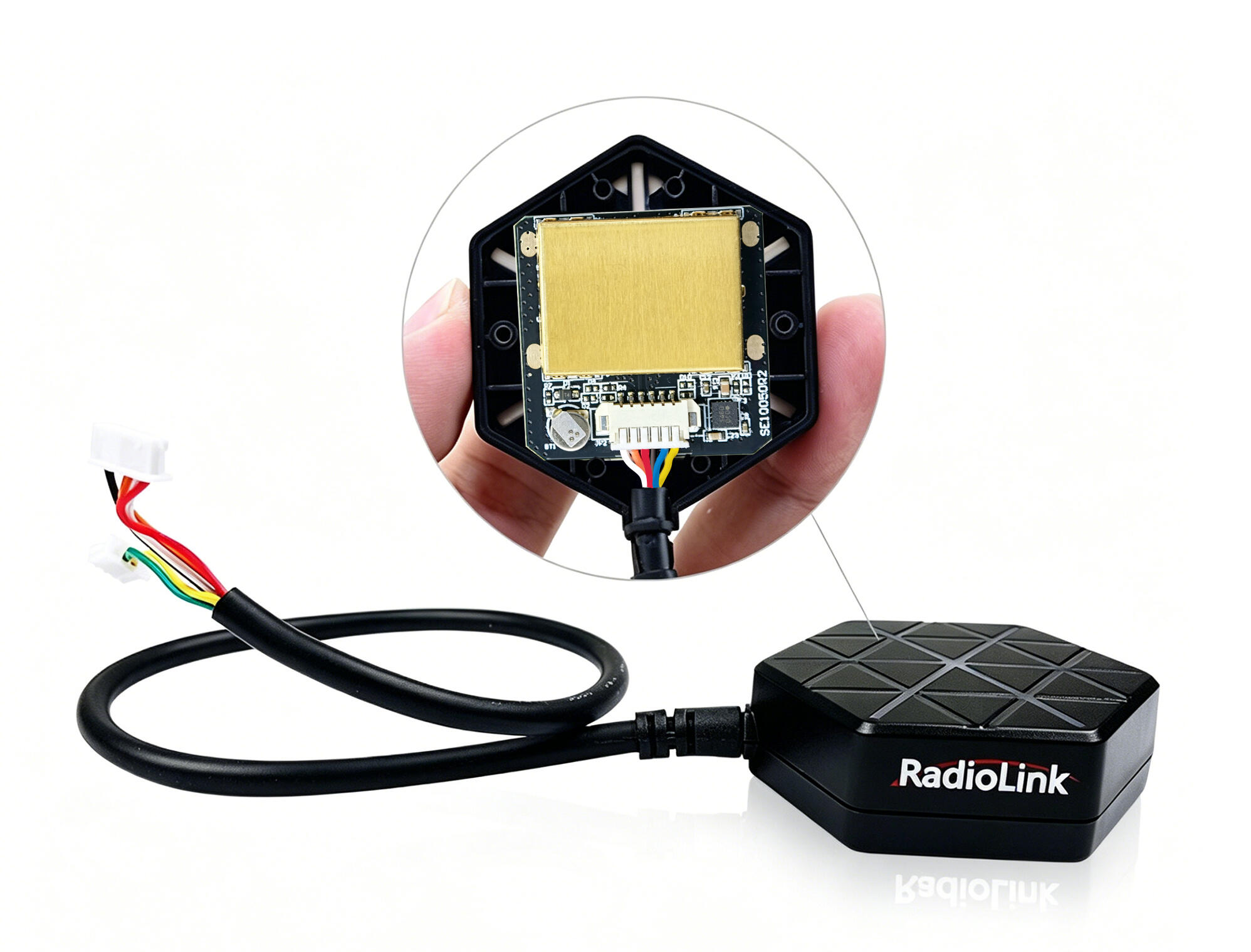

Professional Design

20 years of RF experience

Radiolink SE100 benefits from the professional wireless experiences of Radiolink engineers and exceeds the limitation of the IC sensitivity index from circuit schematic design to PCB placement.

Appearance patent.

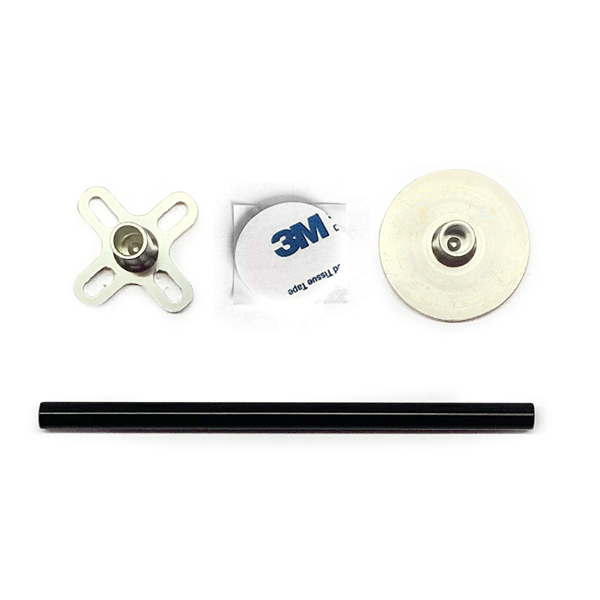

Excellent Industrial Design

Perfect combination of technology and art, full of science magic from function to appearance design.

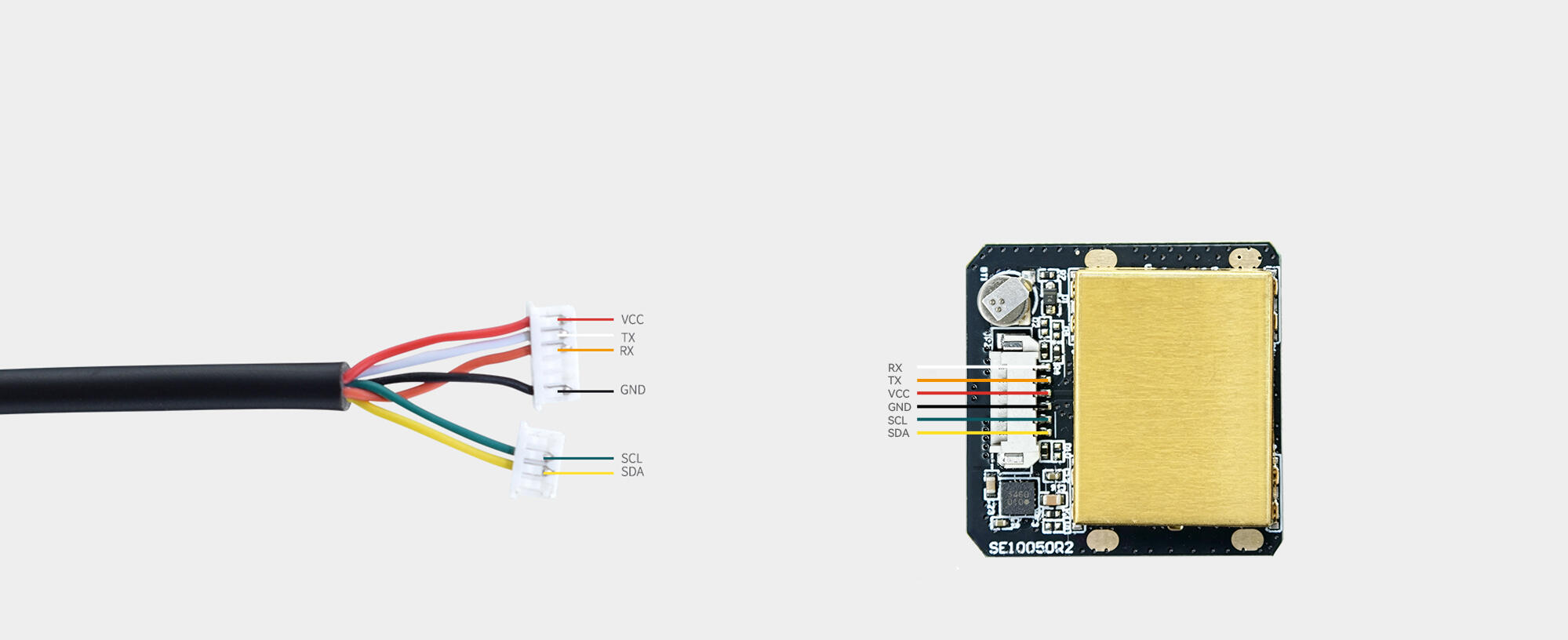

Definition of Wires

Definition of Wire that connect to Flight Controller PIXHAWK

SE100

GPS port

I2C port
